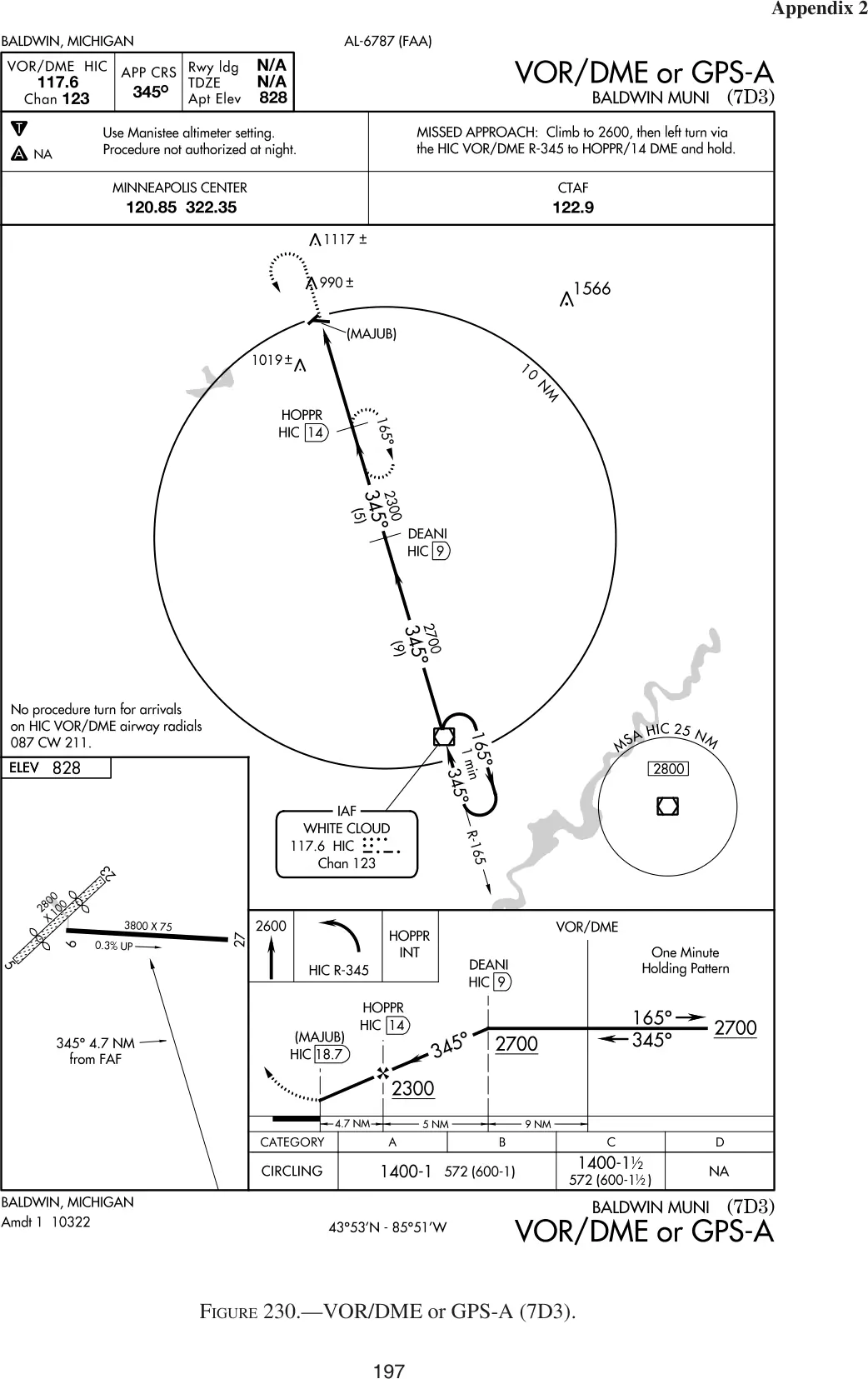

Figure 230: VOR/DME or GPS-A, Baldwin (7D3)
FAA-CT-8080-3F · Instrument Rating supplement · asked on the Instrument Rating test
1 FAA question that refer to this figure
Question 1 · Instrument Rating
(Refer to FAA-CT-8080-3F, Figure 230.) The minimum safe altitude (MSA) for the VOR/DME or GPS-A at 7D3 is geographically centered on what position?
- A.DEANI intersection.
- B.WHITE CLOUD VOR/DME.
- C.MAJUB intersection.
Show answer and explanation
Correct: B. WHITE CLOUD VOR/DME.
The minimum safe altitude circle on the 7D3 VOR/DME or GPS-A chart (Figure 230) is labeled "MSA HIC 25 NM" with a single sector of 2800, meaning it is centered on the HIC facility, White Cloud VOR/DME, and covers 25 NM around it. DEANI and MAJUB are fixes on the approach course, not MSA centers.
